Haematology 3 Part Analyzer
Compact design intended for laboratories requiring a small-footprint CBC analyzer.
60 tests/hour throughput.
Main features
Compact design intended for laboratories requiring a small-footprint CBC analyzer.
60 tests/hour throughput.
Uses only 9 µL in whole-blood and capillary modes.
Smart data software and LIS integration are supported.
Automated calibration and self-monitoring functions

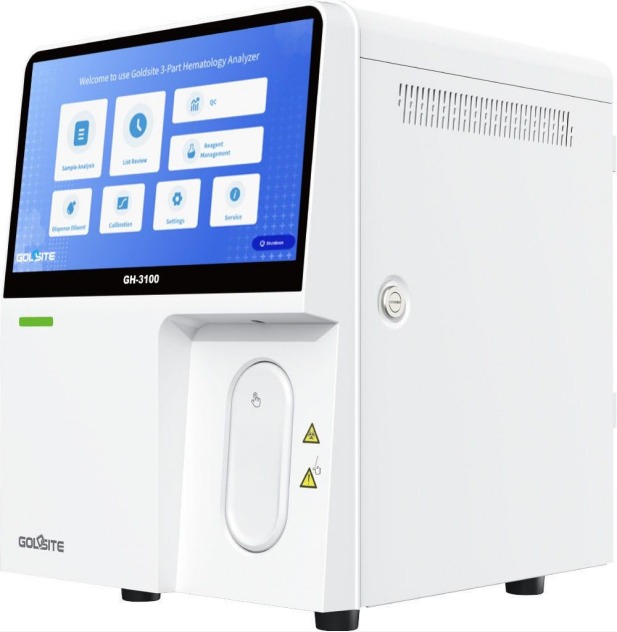

Goldsite GH-3100 — Product Details
Specification GH-3100
Manufacturer Goldsite Diagnostics Inc.
Model GH-3100
Type – Automatic 3-part differential hematology analyzer
Application – CBC / complete blood count
Differential – Granulocytes, lymphocytes, MID/monocytes
Parameters – 21 parameters + histograms
Throughput – 60 samples/hour
Sample volume – 9 µL whole blood / 9 µL capillary / 20 µL prediluted
WBC/RBC/PLT – principle Electrical impedance
HGB principle – Cyanide-free colorimetry
Calibration – Manual & automatic
Quality control – 3-level QC; L-J and X-B QC
Data storage – Up to 500,000 results with histograms
Dimensions – 490 × 442 × 455 mm
Weight – 19 kg
Power – 100–240 V, 50/60 Hz
– 15–30°C
Operating humidity – 10–90% RH
21 reported parameters :
The analyzer reports WBC, Gran%, Lym%, MID%, Gran, Lym, MID, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR and P-LCC.
